          所有產品

          RYJ-SP系列塑料雙層片材擠出機,多層塑料擠出機

          價格:
          $88000-$118000
          分類:
          擠出片材機
          發布時間:
          2020-03-28
          加入購物車
          立即購買
          -


          RYJ-SP Series Plastic Sheet Extruding Machine

          RYJ-SP系列塑料多層片材擠出機

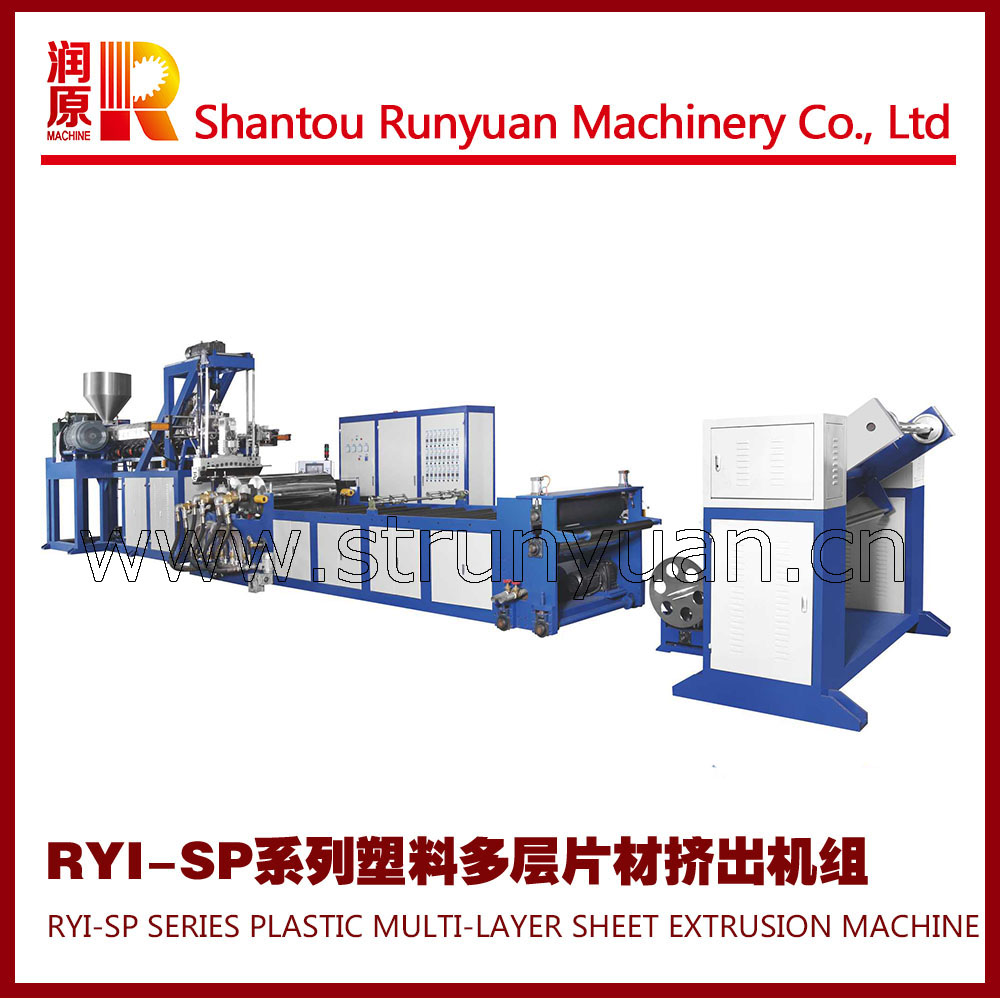

          Machine Picture 機器圖片



          Structural characteristics 結構特性



          ●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand.

          It is mainly applied to produce PP, PE, PS, HIPS sheet etc.

          RYJ-SP系列塑料片材擠出機是根據市場需求研制的,主要用于生產PP、PE、PS、HIPS等片材

          The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.

          擠出機的螺桿采用大長徑比,成形效果好,片材厚度均勻,運行速度一致

          This machine includes screw extruder, 3-roller calandar, traction rewinder.

          本機包括螺桿擠出機、三輥壓延機、牽引復卷機

          Three rollers controlled by three motors separately.

          三個輥筒分別由三個電機控制

          Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.

          壓輥表面光亮,表面溫度均勻,確保壓片清潔,厚度均勻



          Parameter 參數

          MODEL

          型號

          RYJ-SP-900-105

          RYJ-SP-900-110

          RYJ-SP-900-120

          Roller Length

          輥筒長度

          320*900mm

          420*900mm

          420*900mm

          Sheet Width

          片材寬度

          750mm

          750mm

          750mm

          Sheet Thickness

          片材厚度

          0.3-2.0mm

          0.3-2.0mm

          0.3-2.0mm

          Screw Diameter

          螺桿直徑

          105mm

          110mm

          120mm

          Screw Length-Diameter Ratio

          螺桿長度-直徑比

          1:33

          1:34

          1:35

          Total Power

          總功率

          110kw

          120kw

          145kw

          Heating Power

          加熱功率

          45kw

          60kw

          70kw

          Max. Output

          *輸出

          220kg/h

          250kg/h

          350kg/h

          Dimension

          尺寸

          12×1.8×2 (m)

          12.5×1.8×2 (m)

          13×1.8×2 (m)

          Total Weight

          總重量

          8T

          9T

          10T

          Machine Produce Picture 機器生產圖片

          Plastic Extrusion Machine

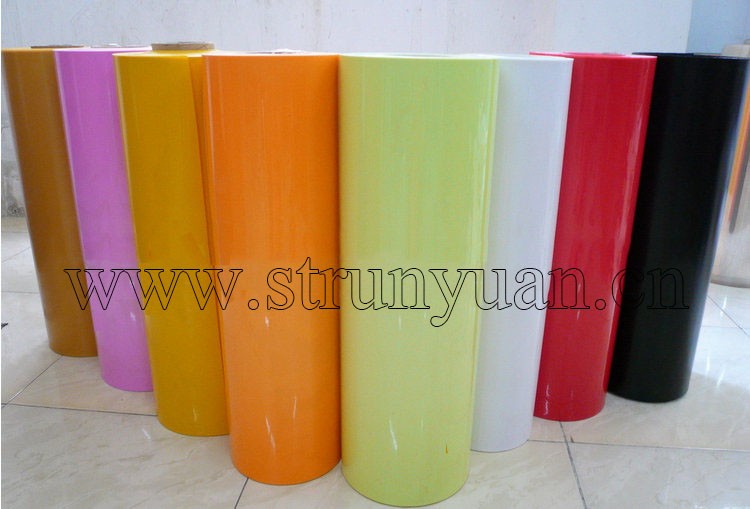

          Sheet Sample Picture 片材樣品圖片

          Plastic Extrusion Machine

          Factory Loading Container 工廠裝柜

          Plastic Extrusion Machine
